MM6 SERIES

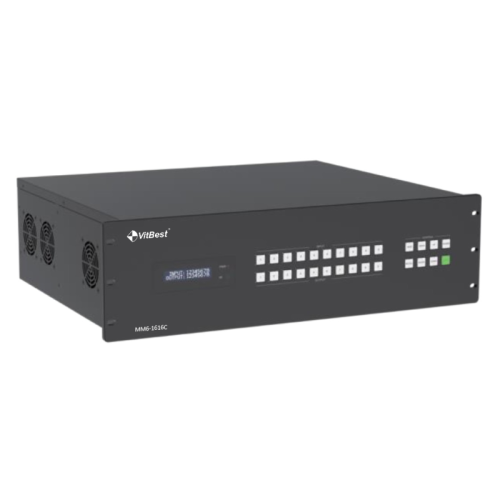

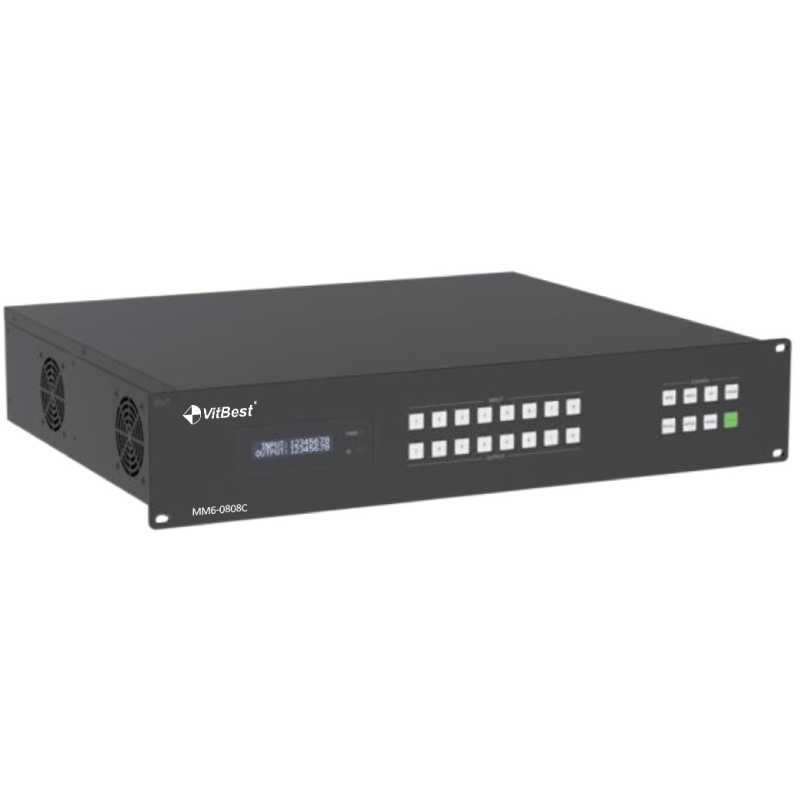

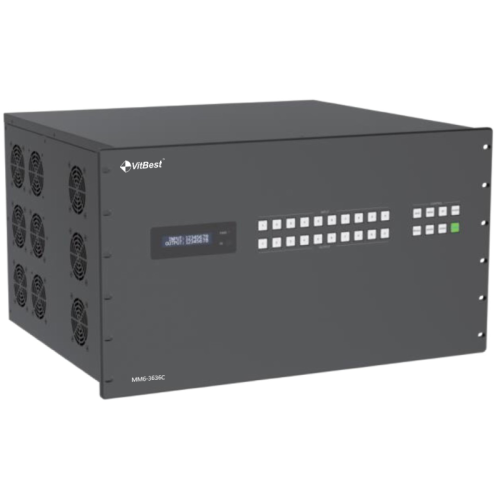

MM6-0808C/1616C/3636C
MM6-0808CR/1616CR/3636CR
Modular Matrix Switcher of MM6 Series

Request a Quote

Please add this product to your quote cart.
We will get in touch with you once we receive your request.

This VitBest MM6 Modular Seamless Switching Matrix is a professional all-in-one machine that supports various audio and video signal switching and distribution, integrated video wall function and control system. It supports up to 8~36 signal inputs and 8~36 signal outputs. Audio and video matrix adopts pure hardware high-speed matrix switching chip, which has high integration, stable system, no compression/loss/delay of signal.
Advanced full digital signal processing technology can ensure signal distortion-free processing, and the best
image quality to the display devices.

FEATURES

HDMI 2.0b and HDCP 2.2 compliant
HDMI 18Gbps video bandwidth, up to 4K60 YCbCr 4:4:4 24bit
Pluggable card structure (One card with four channels)
Support 8/16/36 channel video signal inputs and outputs
Multiple input/output cards with HDMI, DVI-U (DVI/VGA/YPbPr/CVBS), VGA, 3G/HD/ SD-SDI,
HDBaseT and optical fiber
Video resolution up to 1920×1200p60hz (2K series card), 3840x2160p60hz (4K series card)
Seamless switching without image tear, black screen or flicker in the switching process
Based on Gen-Lock video wall splicing technology, the latency between any output channel is less
than 0.1ms

Datasheet

User Manual

SPECIFICATIONS

TECHNICAL

Model	MM6-0808C/CR	MM6-1616C/CR	MM6-3636C/CR
Description	8x8 modular chassis / 8x8 with redundant power supply	16x16 modular chassis / 16x16 with redundant power supply	36x36 modular chassis/ 36x36 with redundant power supply
HDMI Compliance	HDMI 1.4 (2K/1080P series card), HDMI 2.0b (4K series card)
HDCP Compliance	HDCP 1.4 (2K/1080P series card), HDCP2.2 (4K series card)
Video Bandwidth	600MHz/18Gbps
Video Resolution	1920x1200p60Hz (2K/1080P series card) 3840x2160p60Hz 4:4:4 (4K series card)
Color Depth	2K/1080P series card: 8/10/12-bit (1080P60Hz) 4K series card: 8/10/12-bit (4K30Hz); 8-bit (4K60Hz 4:4:4)
Color Space	RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Audio Formats	HDMI audio: LPCM 2.0 / 5.1 / 7.1CH Analog audio: LPCM 2.0CH
ESD Protection	Human body model — ± 8KV (Air-gap discharge) & ± 4KV (Contact discharge)
Input Ports	2 x Input card (8x8 Matrix); 4 x Input card (16x16 Matrix); 9 x Input card (36x36 Matrix)
Output Ports	2 x Output card (8x8 Matrix); 4 x Output card (16x16 Matrix); 9 x Output card (36x36 Matrix)
Housing	Metal Enclosure
Color	Black
Dimension (WDH)	48337789mm	483379133mm	483378266mm
Weight	5.95KG(Without cards)	8.62KG(Without cards)	15.4KG(Without cards)
Consumption	40W ~ 190W (Match with different input/output cards)	80W ~ 320W (Match with different input/output cards)	200W ~ 840W (Match with different input/output cards)
Power Supply	AC 100 - 240V, 50/60Hz
Operating Temperature	0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature	-20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity	20 ~ 90% RH (no condensation)

I/O CARDS

Input Cards

4K60 Switching Input Cards

MC6-IN-HDMI	HDMI Input Card (4K60) 4-channel HDMI input signals HDMI Port: HDMI Type A Support 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz; 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60), 1920x1200p60Hz (1200p60), 3840x2160p24(2160p24), 3840x2160p25(2160p25), 3840x2160p30(2160p30), 3840x2160p50(2160p50),3840x2160p60(2160p60), 4096x2160p24(2160p24), 4096x2160p25(2160p25), 4096x2160p30(2160p30), 4096x2160p50(2160p50),4096x2160p60(2160p60) HDMI 2.0b compliant HDCP 2.2 compliant Video Bandwidth: 18Gbps Color Depth: 8/10/12-bit Audio Port: 3.81mm Phoenix Connector Support external audio source input (LPCM 2.0CH)
MC6-IN-HDBT-150 *For VitBest ED-150-TRA only	HDBT 150m Input Card (4K60) 4-channel HDBT input signals HDBT Port: RJ45 Support 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz; 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59),1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz (1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60), 1920x1200p60Hz (1200p60), 3840x2160p24 (2160p24), 3840x2160p25 (2160p25), 3840x2160p30 (2160p30), 3840x2160p50 (2160p50), 3840x2160p60 (2160p60), 4096x2160p24 (2160p24), 4096x2160p25 (2160p25), 4096x2160p30 (2160p30), 4096x2160p50 (2160p50), 4096x2160p60 (2160p60) HDMI 2.0b compliant HDCP 2.2 compliant Video Bandwidth: 18Gbps Color Depth: 8/10/12-bit Audio Port: 3.81mm Phoenix Connector Support external audio source input (LPCM 2.0CH) Distance up to 120m at 4K60 and 150m at 1080P@60 and 4K30 * Request additional 24V POC input

MC6-IN-HDMI

HDMI Input Card (4K60)

4-channel HDMI input signals
HDMI Port: HDMI Type A
Support 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz; 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60), 1920x1200p60Hz (1200p60), 3840x2160p24(2160p24), 3840x2160p25(2160p25), 3840x2160p30(2160p30), 3840x2160p50(2160p50),3840x2160p60(2160p60), 4096x2160p24(2160p24), 4096x2160p25(2160p25), 4096x2160p30(2160p30), 4096x2160p50(2160p50),4096x2160p60(2160p60)
HDMI 2.0b compliant
HDCP 2.2 compliant
Video Bandwidth: 18Gbps
Color Depth: 8/10/12-bit
Audio Port: 3.81mm Phoenix Connector
Support external audio source input (LPCM 2.0CH)

MC6-IN-HDBT-150
*For VitBest ED-150-TRA only

HDBT 150m Input Card (4K60)

4-channel HDBT input signals
HDBT Port: RJ45
Support 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz; 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59),1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz (1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60), 1920x1200p60Hz (1200p60), 3840x2160p24 (2160p24), 3840x2160p25 (2160p25), 3840x2160p30 (2160p30), 3840x2160p50 (2160p50), 3840x2160p60 (2160p60), 4096x2160p24 (2160p24), 4096x2160p25 (2160p25), 4096x2160p30 (2160p30), 4096x2160p50 (2160p50), 4096x2160p60 (2160p60)
HDMI 2.0b compliant
HDCP 2.2 compliant
Video Bandwidth: 18Gbps
Color Depth: 8/10/12-bit
Audio Port: 3.81mm Phoenix Connector
Support external audio source input (LPCM 2.0CH)
Distance up to 120m at 4K60 and 150m at 1080P@60 and 4K30
* Request additional 24V POC input

2K/1080P Switching Input Cards

MC6-IN-HDMI-1080P	HDMI 1080P Input Card 4-channel HDMI input signals HDMI Port:HDMI Type A Support 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x768p60Hz, 1280x800p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1400x1050p60Hz, 1600x1200p60Hz,1920x1080p60Hz, 1920x1200p60Hz; 720x480i59.94Hz (480i59), 720x480p59.94Hz (480p59), 720x576i50Hz (576i50), 720x576p50Hz (576p50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60),1920x1200p60Hz (1200p60) HDMI 1.4 compliant HDCP 1.4 compliant Video Bandwidth: 6.75Gbps Color Depth: 8/10/12-bit (1080p60Hz) Audio Port: 3.81mm Phoenix Connector Support external audio source input (LPCM 2.0CH)
MC6-IN-MAV-1080P	HDMI/DVI/VGA/YPBPR/AV 1080P Input Card 4-channel DVI input signals DVI Port: DVI-I, 28-pin female Signal Format: DVI-I full digital TMDS signal, which is compliant with DVI1.0 Support 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz,1280x800p 60Hz, 1280x1024p60Hz,1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1200p60Hz Color Depth: 8-bit (1080p60Hz) Signal Level: TMDS 400 ~ 600mVp-p Impedance: 100Ω Video Bandwidth: 4.95Gbps Audio Port: 3.81mm Phoenix Connector Support external audio source input (LPCM 2.0CH)
MC6-IN-VGA	VGA 1080P Input Card 4-channel VGA input signals VGA Port: DB15, 15-pin female Signal Format: RGB (Analog) Support 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x720p60Hz, 1280x800p60Hz, 1280x1024p60Hz,1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1080p60Hz, 1920x1200p60Hz Color Depth: 8-bit (1080p60Hz) Horizontal Scan Frequency: 15KHz ~ 90KHz Synchronization Type: RGBHV Impedance: 75Ω Nominal level: 0.7Vp-p Audio Port: 3.81mm Phoenix Connector Support external audio source input (LPCM 2.0CH)
MC6-IN-SDI	SDI 1080P Input Card 4-channel SDI input signals SDI Port: BNC/female Signal Format: HD-SDI (SMPTE 292M)/3G-SDI Support 720x480i59.94Hz (480i59), 720x576i50Hz (576i50), 1280x720p50Hz (720p50), 1280x720p59.94Hz (720p59), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i59.94Hz (1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz (1080p23), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p29.97Hz (1080p29), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p59.94Hz (1080p59), 1920x1080p60Hz (1080p60) Color Depth: 8-bit (1080p60Hz) Video Bandwidth:2.97Gbps Impedance:75Ω Support external audio source input (LPCM 2.0CH) Audio Port: 3.81mm Phoenix Connector

Output Cards

4K60 Switching Output Cards

MC6-OUT-HDMI	HDMI Output Card (4K60) 4-channel HDMI output signals HDMI Port: HDMI Type A Support 720x576i50, 720x480i60, 1024x768p60, 1280x720p50, 1280x720p60, 1280x800p60, 1360x768p60, 1920x1200p60, 1920X1080i50, 1920X1080i60, 1920X1080P50, 1920x1080p60, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p50 (2160p50), 4096x2160p60 (2160p60) HDMI 2.0b compliant HDCP 2.2 compliant Video Bandwidth:18Gbps Color Depth: 8/10/12-bit Audio Port: 3.81mm Phoenix Connector Support stereo analog audio output (LPCM 2.0CH)
MC6-OUT-HDBT-150 *For VitBest ED-150-TRA only	HDBT 150m Output Card (4K60) 4-channel HDBT output signals HDBT Port: RJ45 Support 720x576i50, 720x480i60, 1024x768p60, 1280x720p50, 1280x720p60, 1280x800p60, 1360x768p60, 1920x1200p60, 1920X1080i50, 1920X1080i60, 1920X1080P50, 1920x1080p60, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p50 (2160p50), 4096x2160p60 (2160p60) HDMI 2.0b compliant HDCP 2.2 compliant Video Bandwidth: 18Gbps Color Depth: 8/10/12-bit Audio Port: 3.81mm Phoenix Connector Support stereo analog audio output (LPCM 2.0CH) Distance up to 120m at 4K60 and 150m at 1080P@60 and 4K30 * Request additional 24V POC input

MC6-OUT-HDMI

HDMI Output Card (4K60)

4-channel HDMI output signals
HDMI Port: HDMI Type A
Support 720x576i50, 720x480i60, 1024x768p60, 1280x720p50, 1280x720p60, 1280x800p60, 1360x768p60, 1920x1200p60, 1920X1080i50, 1920X1080i60, 1920X1080P50, 1920x1080p60, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p50 (2160p50), 4096x2160p60 (2160p60)
HDMI 2.0b compliant
HDCP 2.2 compliant
Video Bandwidth:18Gbps
Color Depth: 8/10/12-bit
Audio Port: 3.81mm Phoenix Connector
Support stereo analog audio output (LPCM 2.0CH)

MC6-OUT-HDBT-150
*For VitBest ED-150-TRA only

HDBT 150m Output Card (4K60)

4-channel HDBT output signals
HDBT Port: RJ45
Support 720x576i50, 720x480i60, 1024x768p60, 1280x720p50, 1280x720p60, 1280x800p60, 1360x768p60, 1920x1200p60, 1920X1080i50, 1920X1080i60, 1920X1080P50, 1920x1080p60, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p50 (2160p50), 4096x2160p60 (2160p60)
HDMI 2.0b compliant
HDCP 2.2 compliant
Video Bandwidth: 18Gbps
Color Depth: 8/10/12-bit
Audio Port: 3.81mm Phoenix Connector
Support stereo analog audio output (LPCM 2.0CH)
Distance up to 120m at 4K60 and 150m at 1080P@60 and 4K30
* Request additional 24V POC input

2K/1080P Switching Output Cards

MC6-OUT-HDMI-1080P	HDMI 1080P Output Card 4-channel HDMI output signals HDMI Port: HDMI Type A Support 1024x768p60, 1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080p30, 1920x1080p60, 1920x1200p60 (The user can select the resolution through the control software) HDMI 1.4 compliant HDCP 1.4 compliant Video Bandwidth: 4.95Gbps Color Depth: 8-bit (1080p60Hz) Audio Port: 3.81mm Phoenix Connector Support stereo analog audio output (LPCM 2.0CH)
MC6-OUT-MAV-1080P	HDMI/DVI/VGA/YPBPR/AV 1080P Output Card 4-channel DVI output signals DVI Port: DVI-I, 28-pin female Signal Format: DVI-I full digital TMDS signal, which is compliant with DVI1.0 Support 1024x768p60, 1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080p30, 1920x1080p60, 1920x1200p60 (The user can select the resolution through the control software) Color Depth: 8-bit (1080p60Hz) Signal Level: TMDS 400 ~ 600mVp-p Impedance: 100Ω Video Bandwidth: 4.95Gbps Audio Port: 3.81mm Phoenix Connector Support stereo analog audio output (LPCM 2.0CH)
MC6-OUT-VGA	VGA 1080P Output Card 4-channel VGA output signals VGA Port: DB15, 15-pin female Signal Format: RGB (Analog) Support 1024x768p60, 1280x720p60, 1280x1024p60, 1360x768p60, 1680x1050p60, 1600x1200p60, 1920x1080p30, 1920x1080p60, 1920x1200p60 (The user can select the resolution through the control software) Color Depth: 8-bit (1080p60Hz) Horizontal Scan Frequency: 15KHz ~ 90KHz Synchronization Type: RGBHV Impedance: 75Ω Nominal level: 0.7Vp-p Audio Port: 3.81mm Phoenix Connector Support stereo analog audio output (LPCM 2.0CH)
MC6-OUT-SDI	SDI 1080P Output Card 4-channel SDI output signals SDI Port: BNC/female Signal Format: HD-SDI (SMPTE 292M)/3G-SDI Support 720x480i60Hz (480i60), 720x576i50Hz (576i50), 1280x720p 25Hz (720p25), 1280x720p30Hz (720p30), 1280x720p50Hz (720p50), 1280x720p60Hz (720p60), 1920x1080i50Hz (1080i50), 1920x1080i60Hz (1080i60), 1920x1080p24Hz (1080p24), 1920x1080p25Hz (1080p25), 1920x1080p30Hz (1080p30), 1920x1080p50Hz (1080p50), 1920x1080p60Hz (1080p60) Color Depth: 8-bit (1080p60Hz) Video Bandwidth: 2.97Gbps Impedance: 75Ω Audio Port: 3.81mm Phoenix Connector Support stereo analog audio output (LPCM 2.0CH)
